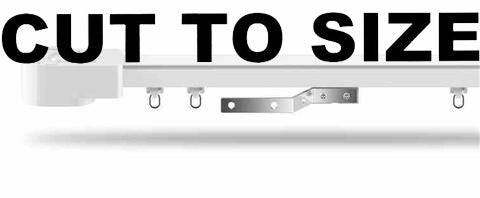

Somfy Movelite 35 RTS Wave Motorised Curtain Track | Custom Cut-to-Size

Curtain Hardware & Blinds Co. manufactures custom, cut-to-size Somfy Movelite 35 RTS Wave Motorised Curtain Tracks in solid, continuous single spans up to 5.5 meters. Featuring integrated S-Fold wave gliders and a 35kg fabric capacity, these premium radio-controlled tracks are factory-assembled to exact millimeter specifications on a transparent 0.5-meter pricing model.

Includes:

- Single Somfy Movelite 35 RTS Motor with Assembled Wave Curtain Rail

- Cut-to-Size

- NON Wifi. See TaHoma Switch

ADD ON

- 2 Channel Remote Control (up to 2 Motors)

- 5 Channel Remote Control (up to 5 Motors)

Note:

- Only require 1 x Remote, per Room

• This is NOT a kit product (ie, with multiple Joins) - full lengths available up to 5.5m

Somfy Movelite 35 RTS Wave Motorised Track: Specifications & Factory Sizing

The Somfy Movelite 35 RTS Wave combines the premium reliability of globally acclaimed French automation with the uniform, flowing aesthetics of modern "S-Fold" or Wave window treatments. Custom-cut down to the exact millimeter by Curtain Hardware & Blinds Co., this heavy-duty system is delivered as a solid, continuous single-span extrusion capable of handling heavy wave curtains up to 35kg. We do not manufacture using split, multi-piece retail joining kits.

Factory Sizing & 0.5m Pricing Matrix

Our precision engineering facility bills manufacturing using strict 0.5-meter pricing steps. Your track is cut to your exact millimeter specification, while billing rounds up to the nearest 0.5-meter increment.

Custom S-Fold Measurement Sizing Formulas

Because custom-engineered, motorized wave tracks cannot be returned, you must calculate your final width instructions using our factory formulas:

• Reveal Fix (Inside Window Recess or Ceiling Bulkhead): Measure the exact wall-to-wall recess width. Deduct exactly 10mm to 15mm from your final width parameter. This ensures the Somfy RTS end-gears, internal drive loops, and motor housing seat effortlessly without rubbing or scraping the walls.

• Face Fix (Wall Mounted Beyond the Recess): Measure the outer width of your window frame. Add between 25cm and 40cm onto both the left and right sides (total extension of 50cm to 80cm). This critical extension allows your volumetric S-Fold fabric to stack back fully away from the glass when opened, maximizing natural light.

S-Fold Clearance & Structural Assembly Composition

• Pre-Linked Wave Gliders: Features factory-installed, specialized linked wave gliders. These gliders are structurally spaced to hold your fabric in a uniform "S" ripple from edge to edge.

• Included Hardware (Factory Pre-Assembled): Heavy-duty extruded aluminum architectural track, genuine Somfy Movelite 35 RTS motor, specialized wave gliders, high-tensile internal drive belt, overlap arms, and heavy-duty brackets (configurable for ceiling top-fix or wall face-fix).

• Excluded Items: Somfy remote controls (sold separately). Wall anchors and installation screws (must be sourced locally to match your specific drywall, brick, or concrete substrate).

• Smart Home Connectivity: Operates natively on Somfy RTS radio frequency. Smartphone control, scheduling, and Alexa/Google Home voice activation require pairing with the Somfy TaHoma Gateway Hub (sold separately).

Tiered Logistics & Factory Delivery Rules

• Fulfillment Window: 5 to 7 business days for precision cutting, wave glider population, belt tension calibration, and computerized bench testing.

• Delivery Tiering: Solid tracks up to 3.0 meters are shipped using standard national courier channels. Tracks from 3.1 meters up to the 5.5-meter limit require specialized over-length freight handling to ensure your unbroken track arrives perfectly straight.

💡 Pro-Tip: Solving the S-Fold Clearance and Stacking Dilemma

"How much physical space do my wave curtains need to move freely?"

Because Wave/S-Fold curtains ripple forward and backward from the center of the track, they require more physical breathing room than standard pinch-pleat curtains. To ensure your waves don't crush against the wall or scrape your window glass, verify you have a minimum clearance depth of at least 80mm to 100mm for a single track (or 160mm+ for a double track configuration). If you are hiding this track inside a modern ceiling bulkhead recess, ensure your recessed box is wide enough to let the Somfy motor and flowing fabric glide smoothly without any friction!
