Custom Cut-to-Size Light Filtering Roller Blinds | Semi Blockout
NOTE: Your custom cut-to-size input expires after 2 hours. Please try again.
FREE DELIVERY Countrywide
Includes:
- Complete Roller Blind, Controls and Brackets.
- Continuous PVC Ball Chain.
NOTES:
- Leadtime approx 5-7 work days.
- Light Filtering Fabric offers privacy day and night, allowing only light to filter through
VERY IMPORTANT
Double check sizes CORRECT (particularly Width)
- Adjustment per Blind: R350
- Return/Delivery Fee: R300

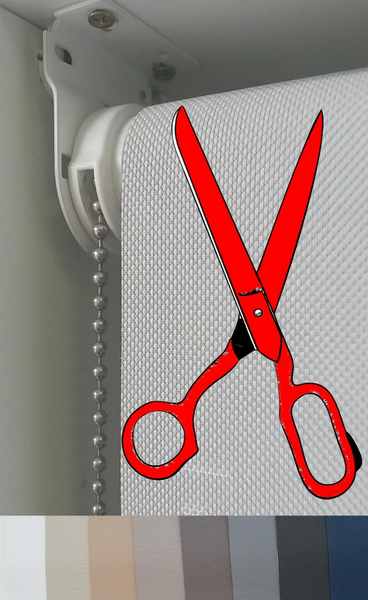

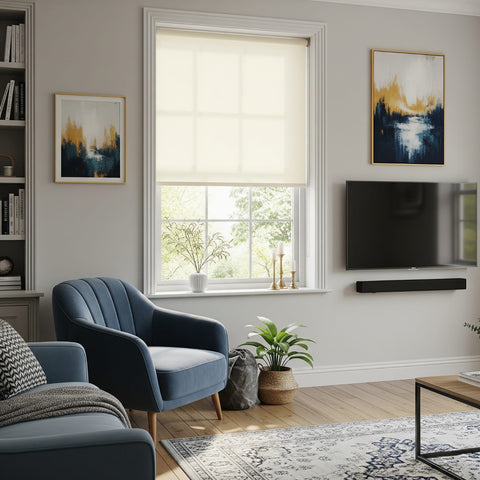

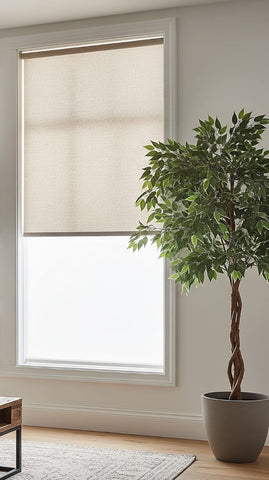

Custom Cut-to-Size Light Filtering Roller Blinds
Product Overview & Architectural Performance
Transform intense, direct sunlight into soft, productive indoor illumination with our Custom Cut-to-Size Light Filtering Roller Blinds. Precision-manufactured in South Africa by Curtain Hardware & Blinds Co. (the official direct-to-consumer division of Curzon), this architectural-grade translucent system softens incoming light, cuts screen glare, and shields premium interior surfaces from UV fading. It provides excellent daytime privacy and comfortable room brightening, making it ideal for home offices, studies, kitchens, and open-plan living areas.
Technical Specifications Matrix
| Feature Category | Factory Engineering Standard |
|---|---|
| Fabric Performance | Translucent Light Filtering (Diffuses direct glare; preserves natural ambient light) |
| Privacy Profile | High daytime privacy; filters internal shapes/silhouettes under night lighting conditions |
| Maximum Dimensions | Width: 3000mm (Max) | Drop: 3000mm (Max) |
| Minimum Dimensions | Width: 300mm | Drop: 300mm |
| Pricing Architecture | Calculated in width increments; zero custom-cutting fees |
| Roller Mechanism | Commercial-grade, non-telescoping heavy-duty aluminum tube with weighted flat bottom rail |
| Operational Control | Continuous loop smooth PVC ball chain assembly (Left-side or Right-side placement) |
Strict Factory Sizing Rules & Measurement Formulas
1. The Bracket-to-Bracket Width Rule
When inputting your measurements into our online system in millimeters (mm), the Width metric you select specifies the exact total outer width of the complete unit, from bracket edge to bracket edge. To allow standard operational clearance for the smooth-glide hoist, the actual light-filtering fabric roll will measure approximately 30mm to 35mm narrower than the total ordered width.
2. Material Increment Pricing Structure
To support wholesale, factory-direct pricing scales, material consumption is batched and billed in set width increments. The pricing engine automatically rounds your millimeter input up to the closest fabric size tier consumed on our cutting tables, ensuring you bypass traditional retail middle-man premiums.
3. Precision Sizing Math (Reveal vs. Wall Fix)
To avoid fitment friction, apply these specific factory formulas before placing your custom order:
- Inside Window Fit (Reveal Mount): Measure the tightest point within your structural masonry recess window opening. Formula: Final Ordered Width = Measured Width minus 10mm. Enter the Drop exactly as measured. This 10mm deduction guarantees the end caps slide cleanly between your walls.
- Outside Window Fit (Wall / Face Fix): Measure the window structural boundary edge-to-edge. Formula: Final Ordered Width = Measured Width plus 100mm. Final Ordered Drop = Measured Drop plus 100mm. Adding 100mm provides a consistent 50mm overlap on each side to maximize glare control and coverage.
What is Included in Your Factory Pack
- 1 x Custom Cut-to-Size Light Filtering Blind (Fabric rolled onto non-telescoping aluminum core)
- 2 x Heavy-Duty Multi-Directional Universal Mounting Brackets (Top, Face, or Side Fix compatible)
- 1 x Continuous Loop PVC Ball Chain Drive System
- 1 x Child-Safety Cord Tension Retainer
⚠️ Fixing Fasteners Notice: Structural installation screws and wall plugs are not included in our standard kits. Since our custom systems ship countrywide across distinct structural substrates, we recommend sourcing 5mm or 6mm screws optimized to hold your specific mounting base safely (e.g., masonry expansion plugs for brick, self-drilling anchors for drywall, or heavy timber screws for wood frames).
Production Lead Times & Delivery Logistics
- Manufacturing Timeline: Precision cutting, balancing, and mechanical verification take 5 to 7 working days from payment confirmation on our factory floor.
- National Logistics: We provide door-to-door courier delivery countrywide across South Africa.
Installation Guide
