Single Aluminium Curtain Track | Medium Duty Custom-Cut (Up to 6m)
Includes:
1 x Single Medium Duty Aluminium Curtain Rail, Single Metal Brackets (spacing approx 80cm), Single Wheel Runners x 10 per meter, End Caps x 2
Notes:
White.
Up to 6m Lengths.
NO Bends.
TOP TIP - Avoid false, unethical advertisers currently offering standard curtain tracks as Heavy Duty

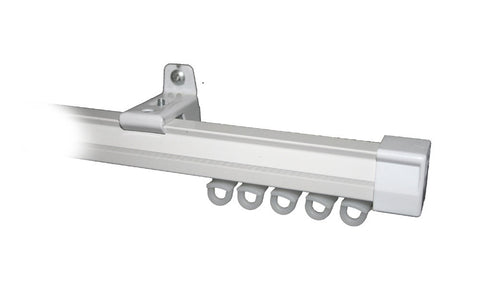

Single Curtain Track | Medium Duty (Custom Cut-to-Size)
The smart, factory-direct essential for flawless single-layer window treatments. This extruded architectural-grade aluminium single track is engineered specifically to eliminate the frustrating sagging and snagging common with cheap, telescoping retail tracks. Custom-manufactured locally by Curtain Hardware & Blinds Co., it delivers a continuous, solid profile tailored exactly to your window measurements.
Technical Product Specifications
| Specification | Details |
| Material Profile | High-tensile, extruded aluminium (White powder-coated finish) |
| Duty Rating | Medium Duty (Supports standard taped, unlined, and lightweight blockout curtains up to 6kg/m) |
| Maximum Seamless Length | Up to 6.0 meters (Continuous single span, no joints) |
| Profile Integrity | 100% Solid & Non-Telescoping (No overlapping ridges to catch hooks) |
| Runner Density | Pre-loaded with 10 high-glide single wheel runners per linear meter |
| Hardware Inclusions | 1x Custom-cut track, loaded runners, 2x secure end caps, single metal brackets (spaced every 80cm-1.0m) |
| Hardware Exclusions | Fasteners (screws/wall plugs) excluded due to varying mounting surfaces (drywall, brick, concrete) |
| Structural Restrictions | Straight runs only. Strictly NO bends or bay window custom configurations. |
Precision Measurement Guide
Because our factory cuts your tracks out of solid, non-telescoping lengths, accurate up-front ordering measurements are critical. Use these exact structural formulas before selecting your size bracket:
-
Wall Fix / Face Fix (Standard Window Overlay): Measure the clean inside width of your window frame, then add a minimum of 15cm to 25cm to each side (30cm to 50cm total overlap). This extra structural tolerance ensures your curtains can stack back completely clear of the glass pane, maximizing incoming natural light.
-
Reveal Fix / Ceiling Fix (Inside the Recess): Measure the exact wall-to-wall distance inside the window recess at three different points. Take the narrowest measurement and subtract 10mm total for clean clearance during installation.
Factory Lead Times & Logistics
Every order is custom-fabricated to order at our central facility. Our production and logistics follow strict operational boundaries:
-
Production Lead Time: Dispatched from the factory floor within 3 to 5 business days from payment confirmation.
-
Sizing & Tiered Shipping Constraints: Due to freight carrier structural length restrictions, orders over 3 meters cannot be shipped via standard economy courier networks. Premium freight handling applies to oversized tracking packages. Local showroom collection is free for all lengths up to 6 meters.
Note: Standard factory processing and production lead times apply to all custom assemblies, including local collections from our premises. A deposit or payment is required prior to production commencement.
