Heavy Duty Double Wave Pleat Curtain Track - White - Ceiling or Wall Mount (1m to 6m)
Includes:
1 x Double Wave Curtain Rails with 6cm String Runner, Double Brackets, End Caps.
Heavy Duty Track System.
6cm String Runner (Spacing)
Notes:
White.
User Friendly Hook System.
Up to 6m Lengths.
Ceiling Fix Brackets will be supplied as Single Ceiling Brackets per rail.
Not Included:
100mm Clear Wave Pleat Curtain Tape
Factory-Direct Heavy Duty Double Wave Pleat Curtain Track, White

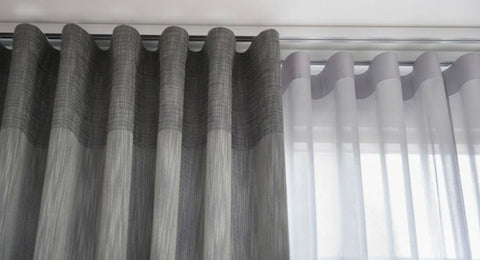

Achieve the architectural, continuous aesthetic of luxury hotel drapery with our heavy-duty Double Wave Pleat Curtain Track. Engineered strictly for flawless S-fold curtain configurations, this commercial-grade dual-track system is supplied in rigid, precision set lengths ranging from 1.0m up to 6.0m.
By bypassing retail middlemen and ordering factory-direct, you secure a structural tracking system designed with exact clearance. This guarantees that your front blockout curtain and rear sheer curtain will glide perfectly past one another without overlapping friction.
Technical Specifications & Dimensions
| Specification | Factory Detail |
| Available Set Lengths | 1.0m, 1.5m, 2.0m, 2.5m, 3.0m, 3.5m, 4.0m, 4.5m, 5.0m, 5.5m, 6.0m |
| Mounting Orientations | Ceiling Fix (Top Mount) or Wall Fix (Face Mount) |
| Draw Configurations | Center Open or Single Stacking (operates both left and right direction) |
| Runner Spacing | Pre-spaced 6cm string runners for uniform S-folds |
| Track Material | Heavy-Duty Powder-Coated Aluminium (White) |
What is Included in Your Kit
Every system is pre-assembled by our factory technicians for immediate installation.
-

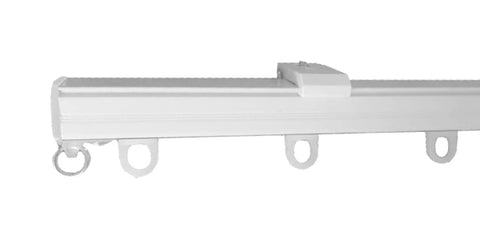

2 x White Aluminium Wave Tracks: Supplied exactly to your selected set length.
-

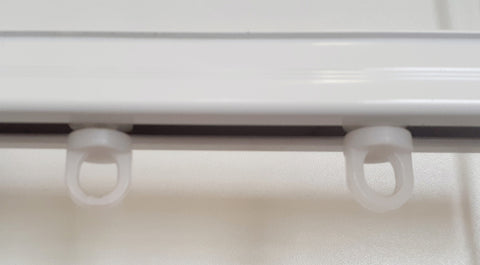

Pre-Linked Wave Runners: 6cm string runners pre-installed to dictate perfect pleat depths.
-
Mounting Brackets: Wall Fix orders receive heavy-duty double brackets. Ceiling Fix orders receive single ceiling brackets per rail, spaced to maintain the exact fabric clearance required for dual waves.
-
4 x Low-Profile End Caps: Two per track to secure carriers.
What is Excluded
-
Substrate Hardware: Due to varying architectural wall materials, standard wall plugs and fixing screws are excluded. Pro Tip: We recommend heavy-duty masonry anchors for brick/concrete, or specialized toggle bolts for hollow plasterboard.
-
Curtain Tape: 100mm Clear Wave Pleat Curtain Tape is sold separately.
Measurement Guide: Reveal vs. Wall Fix Math
To ensure you order the correct set length for your window space, apply our factory standard measurement formulas:
-
Inside Mount (Reveal Fix): Measure the exact width of your window recess from the inside left edge to the inside right edge. Deduct 20mm (10mm clearance per side) from this total. Choose the set length that fits seamlessly within this calculated dimension.
-
Outside Mount (Wall / Face Fix): Measure the total width of the structural window frame. Add 400mm to 600mm to the total width (200mm to 300mm per side). This calculation dictates your "stack back" clearance, ensuring your curtains clear the glass completely when open. Select the closest set length to this final calculation.
Countrywide Tiered Delivery Rates & Logistics
Because we operate a factory-direct model, our logistics are streamlined for reliable delivery across South Africa.
- UP TO 3.0M LENGTHS Countrywide (fast): R175.00 Flat Rate
-
OVERSIZED Delivery (slow): From R550.00 - R750.00
(Note: Standard factory processing time is 3-5 business days prior to dispatch. All tracks up to 6.0m are shipped as continuous, seamless lengths).
