Motorised Curtain Track | Custom Cut-to-Size Wi-Fi Smart Rail (Tuya)
Includes
- Single Touch Motorised Rail, Electric, Wifi
- Remote Control
Note:
- Suitable for Home Automation TUYA App (Wifi)
- The Motor can be hardwired - Remove Motor Cover and a port is available to use.
- This is NOT a kit product (ie, with multiple Joins) - full lengths available up to 5.5m
Motorised Curtain Track Specifications & Factory Ordering Rules
Our premium Motorised Touch Curtain Track is custom-manufactured to your exact requirements. Unlike low-end retail kits, this heavy-duty system is delivered as a completely seamless, continuous, single-span rail engineered to handle demanding custom drapery.
Factory Direct Pricing & Sizing Matrix
Our pricing operates strictly on a 0.5-meter billing increment scale. Your track will be custom-cut to your exact millimeter measurement, but billing rounds up to the nearest 0.5-meter step.
| Track Length Range | Billing Increment | Maximum Single Span | Manufacturing Type |
| Up to 5.5m Max | 0.5m Steps (e.g., 3.2m bills at 3.5m) | 5.5 Metres (Continuous) | Non-Telescoping (Solid Profile) |
Custom Measurement Calculation Rules
To ensure a flawless installation, follow our strict structural engineering sizing formulas before entering your final cut width:
-
Reveal Fix (Inside Window Recess): Measure the exact wall-to-wall recess width at the top, then deduct exactly 10mm to 15mm from the total length. This deduction ensures the factory-assembled end gears and motor housing have adequate structural clearance to slide smoothly into place.
-
Face Fix (Wall Mounted Beyond Recess): Measure the exact outer width of your window frame. Add a minimum of 25cm to 40cm onto both the left and right sides (total extension of 50cm to 80cm). This critical stacking extension lets your heavy blockout or sheer curtains clear the glass completely when fully open.
System Inclusions & Structural Composition
Every single motorized order is dispatched from our floor as a fully operational, integrated assembly.
-

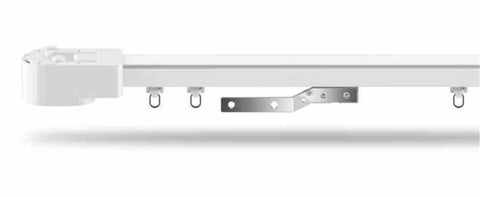

Included Hardware (Factory Pre-Assembled): Heavy-duty extruded aluminum profile, 220V Tuya-compatible Wi-Fi smart motor (discreetly concealed behind the fabric), choice of integrated face-fix or top-fix installation brackets, master carriers with overlap arms, and precision-calculated internal drive belt.
-
Included Controls: 1x Multi-channel wireless remote control.
-
Excluded Hardware: Wall anchors, screws, and fasteners (must be sourced locally to match your specific wall substrate: drywall, brick, or concrete).
Tiered Logistics & Delivery Schedule
Because this track is a solid, non-telescoping continuous profile, it requires specialist freight handling.
-
Factory Lead Time: Approximately 5 to 7 business days for precision engineering, custom cutting, assembly, and quality testing.
-
Delivery Tiering: Track lengths up to 3.0 meters qualify for standard regional courier networks. Lengths from 3.1 meters up to the maximum 5.5 meters require dedicated over-length transport logistics.
3. Conversion Friction Points & "Ordering Anxiety" Solvers
Human shoppers experience high anxiety when buying custom-made, non-returnable luxury items online. Here is how we mitigate that friction dynamically:
💡 Pro-Tip: Navigating Shipping for Massive Over-Length Tracks
Worried about how a solid 5-meter continuous track gets delivered safely to your door? Because we refuse to cut our tracks in half and send you cheap, snagging joiner kits, our rails are shipped as single, unbroken spans of structural aluminum up to 5.5m lengths.
Tracks under 3.0m: Ship via standard courier rates automatically applied at checkout.
Tracks 3.1m to 5.5m: Require specialized, over-length freight carriers.
💡 Pro-Tip: Zero-Risk Measurement Guarantee
Worried about making a costly measuring mistake? Remember our golden factory rule: Measure twice, cut once. If your window recess measures 3455mm, always round down to 3440mm for a Reveal Fix to give your motor room to breathe. If you are uncertain about bracket clearances or electrical placement, drop your raw window measurements into our contact desk before finalizing your cart—our senior engineers will audit your measurements free of charge before the blade hits the aluminum.
