38mm Double Combo Channel Curtain Track | Custom-Cut Aluminum
Includes:
Double 38mm Combo Channel Track System
Double Wall Brackets, End Caps and Curtain Runners.
Notes:
Colour Options - White, Black.

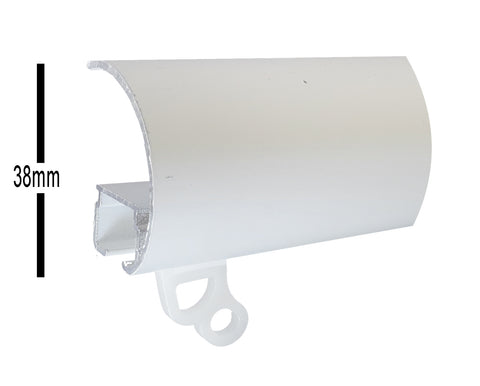

Diameter - 38mm.
Available up to 6.0m lengths.
Wave System also available.
Benefit of stacking curtains along long lengths without interruption of support Brackets.

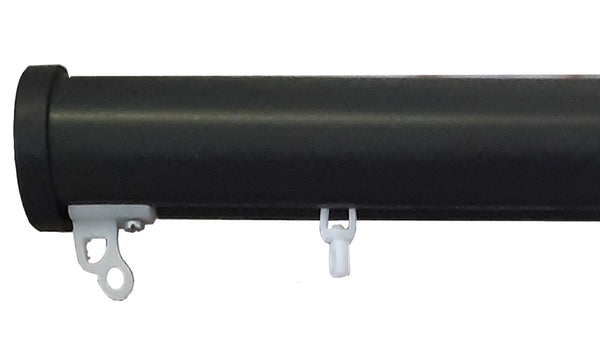

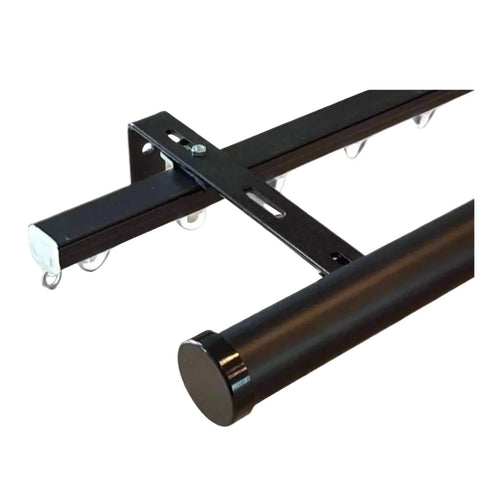

Double Combo Channel Curtain Track (38mm) — Factory Custom-Cut

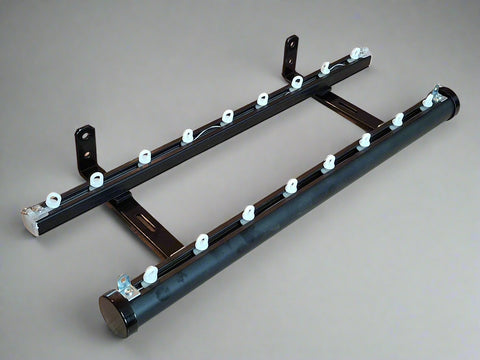

The 38mm Double Combo Channel Curtain Track combines the premium architectural look of a contemporary decorative rod with the effortless functionality of a dual-track glider system. Engineered as a single, heavy-duty aluminum extrusion, this dual-channel setup allows the front and rear curtains to glide past wall brackets without catching. Designed for custom residential and commercial applications.
Technical Specifications & Engineering Profile
| Specification | Profile Detail |
| Front Profile Diameter | 38mm Architectural Decorative Tube |
| Track Material | Heavy-duty architectural grade extruded aluminum |
| System Profile Type | Integrated Dual-Channel Track System (Double Profile) |
| Mounting Mechanism | Wall-Fix via heavy-duty dual-slotted brackets |
| Standard Inclusions | 38mm Dual-Track, Wall Brackets, Heavy-Duty Gliders, Color-Matched End Caps |
| Compatibility | Standard pocket tapes, pinch pleats, and modern Wave systems |
Factory Manufacturing Rules & Sizing Math
Our factory operates on precise industrial parameters to deliver true custom-fit hardware. Please calculate your measurements using our strict factory criteria below:
-

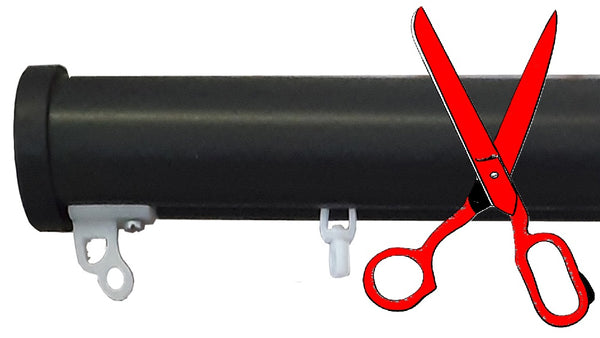

Non-Telescoping Solid Rails: We do not manufacture flimsy, adjustable telescoping tracks. Every system is cut down from raw, solid aluminum sections to your exact millimetric requirement, providing perfect structural stability and seamless glides.
-
0.5-Meter Increment Pricing Rule: While we cut your track to the exact millimeter, pricing rounds up to the nearest 0.5-meter milestone. For example, a track measuring 2.35 meters is billed at the 2.5-meter rate; a track measuring 2.71 meters is billed at the 3.0-meter tier.
-
Exact Fitting Mathematics:
-
Inside the Window Frame (Reveal Fix): Measure the exact wall-to-wall width inside the window reveal at the highest point, then subtract exactly 10mm total clearance. This avoids profile jamming during installation.
-
Outside the Window Frame (Wall Fix): Measure the window opening width and add a minimum of 150mm to 200mm on each side (300mm to 400mm total extension). This ensures your curtains clear the glass when fully drawn back.
-
